Shoring Posts

Resources

All images are for illustration only. Haulotte | BilJax reserves the right to modify specifications without notice. Follow all applicable ANSI and OSHA codes/regulations when using this equipment. Do not use in areas where user can come in contact with live power.

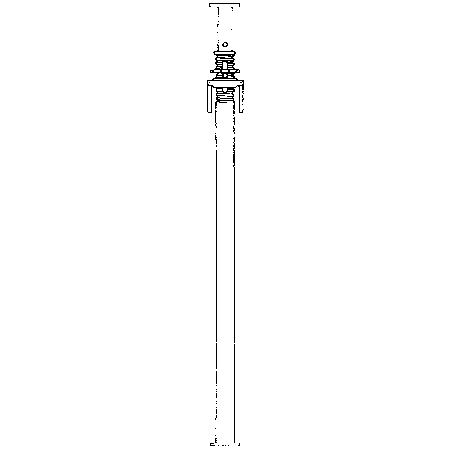

shore post heavy duty

part number
Description Closed Height Extended Height Capacity
Weight

0082-0835 Nut and Handle 5

0068-132 Pin, Chain and Ring 1.5

0051-083 Shoring Post 6'11" 11'4" 6000 57

0051-082 Shoring Post 5'11" 10'4" 6000 53

0051-081 Shoring Post 4'11" 8'7" 6000 45

0051-080 Shoring Post 4'0" 6'10" 6000 40

0051-079 Shoring Post 3'0" 5'0" 6000 31

0051-078 Shoring Post 2'0" 3'3" 6000 25
