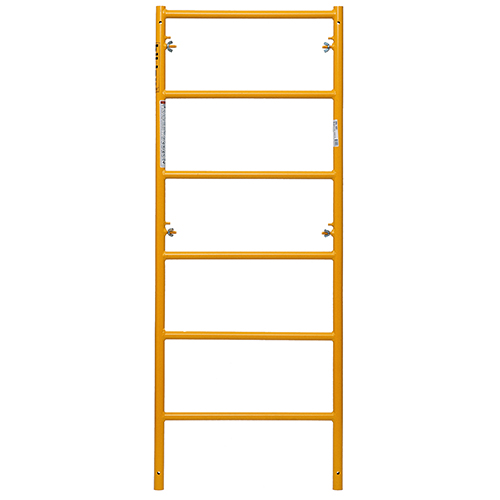

“L” Ladder Frame

Resources

All images are for illustration only. Haulotte | BilJax reserves the right to modify specifications without notice. Follow all applicable ANSI and OSHA codes/regulations when using this equipment. Do not use in areas where user can come in contact with live power.

"L" Ladder Scaffold Frame

part number
Description
Weight

*004-1446^ 4' W x 6' H 43

*004-1445^ 4' W x 5' H 36

*004-1444^ 4' W x 4' H 29

*004-1443^ 4' W x 3' H 22.5

*004-1436^ 3' W x 6' H 36

*004-1435^ 3' W x 5' H 29.5

*004-1434^ 3' W x 4' H 24

*004-1433^ 3' W x 3' H 18.5

*004-1426^ 28" W x 6' H* 31

*004-1425^ 28" W x 5' H* 26

*004-1424^ 28" W x 4' H* 21

*004-1423^ 28" W x 3' H* 16

*Select tube size
^Select lock type
*Exact overall measurements needed when ordering 28" wide frames
