Legs and Base Pads

Resources

All images are for illustration only. Haulotte | BilJax reserves the right to modify specifications without notice. Follow all applicable ANSI and OSHA codes/regulations when using this equipment. Do not use in areas where user can come in contact with live power.

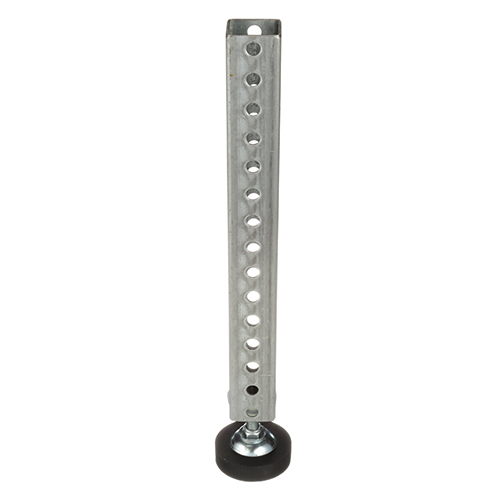

AS2100 fixed stage leg

part number
Description
Weight

0105-0298-24 Fixed Leg Extension 24" 4

0105-0298-18 Fixed Leg Extension 18" 3

0105-0298-12 Fixed Leg Extension 12" 2

0105-0299-027 Fixed Leg with Adjustable Foot - 1 3/4" x 27" 6

0105-0299-021 Fixed Leg with Adjustable Foot - 1 3/4" x 21 6

0105-0299-015 Fixed Leg with Adjustable Foot - 1 3/4" x 15" 4

0105-0299-009 Fixed Leg with Adjustable Foot - 1 3/4" x 9" 3

0105-0299-005 Fixed Leg with Adjustable Foot - 1 3/4" x 5" 3
AS2100 adjustable stage legs

part number
Description
Weight
  0030-086 Adjustable Base Pad without Collar 1
  0030-135 Adjustable Base Pad with 1" Collar 1
  0068-292-50 2 3/8" Snap Pins (box of 50) 6

0105-40-2844 Adjustable Leg Set - 28" -44" 11

0105-40-1828 Adjustable Leg Set - 18" -28" 8

0105-40-1218 Adjustable Leg Set - 12" -18" 5

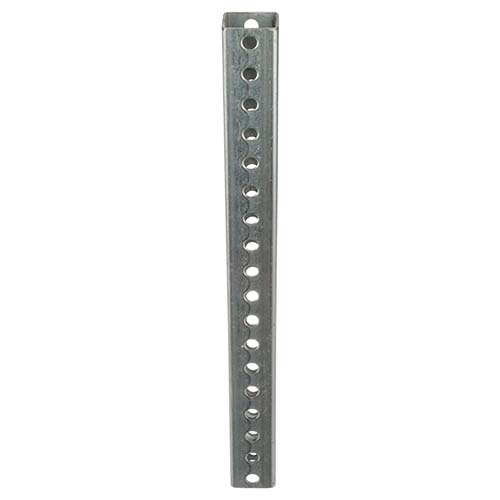

Metal stage leg with holes running up the height

part number
Description
Weight

0065-0299-144 Leg Stock - 1 3/4" x 12' 25

0065-0298-144 Leg Stock - 1 1/2" x 12' 21

0065-0299-033 Individual Leg - 1 3/4" x 33" 6

0065-0299-027 Individual Leg - 1 3/4" x 27" 5

0065-0299-021 Individual Leg - 1 3/4" x 21" 4

0065-0299-015 Individual Leg - 1 3/4" x 15" 3

0065-0299-009 Individual Leg - 1 3/4" x 9" 2

0065-0298-029 Individual Leg - 1 1/2" x 29" 4

0065-0298-021 Individual Leg - 1 1/2" x 21" 3

0065-0298-13 Individual Leg - 1 1/2" x 13" 2

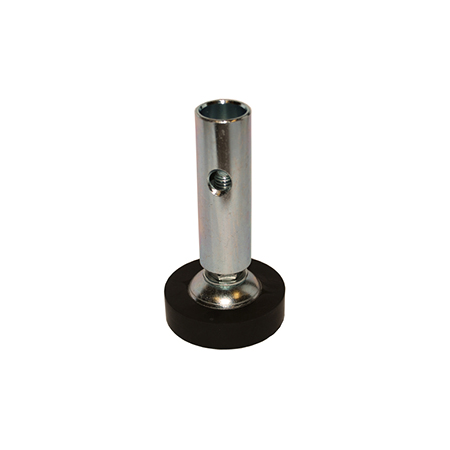

AS2100 stage base pads with a collar and without a collar

part number
Description
Weight

0030-086 Adjustable Base Pad without Collar 1

0030-135 Adjustable Base Pad with 1" Collar 1
