Leveling Jacks

Resources

All images are for illustration only. Haulotte | BilJax reserves the right to modify specifications without notice. Follow all applicable ANSI and OSHA codes/regulations when using this equipment. Do not use in areas where user can come in contact with live power.

scaffold leveling jacks scaffold leveling jacks rigis jack plated rigis jack swivel jack
part number
Description Tube Size
Weight
0069-0071 Leveling Stem Retainer 1

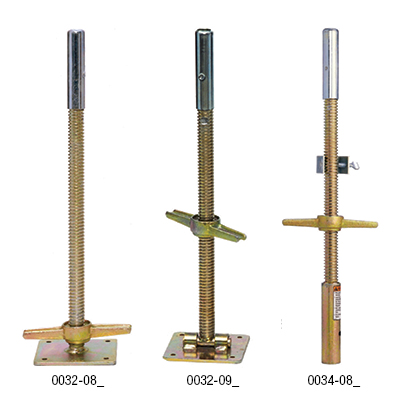

0034-08_ Extension 15" Adjustment with Retainer Kit 11.5
0032-09_ Swivel 24" stem with 15" Adjustment 11.2
0032-086PL Import - Rigid 24" Stem with 15" Adjustment 6, 7 12.5
0032-085PL Import - Rigid 24" Stem with 15" Adjustment 5 10.5
0032-08_ Rigid 24" stem with 15" Adjustment 10.2
scaffold leveling jacks scaffold leveling jacks rigis jack plated rigis jack swivel jack
part number
Description Tube Size
Weight
0032-607 Rigid - 24" Stem 7 5.5
0032-606 Rigid - 24" Stem 6 5.5
0032-605 Rigid - 24" Stem 5 5.5
0032-609 Rigid - 24" Stem 9 6.5
