All images are for illustration only. Haulotte | BilJax reserves the right to modify specifications without notice. Follow all applicable ANSI and OSHA codes/regulations when using this equipment. Do not use in areas where user can come in contact with live power.

Pro-Jax unit components
part number
Description
Weight
0127-138 Adjustable Leg with Rubber Pad 3
0127-136-10 10' Intermediate Guard Rail 28
0127-136-08 8' Intermediate Guard Rail 24
0127-136-06 6' Intermediate Guard Rail 20
0127-118 48" W Outrigger 26
0127-105-24 24" W Outrigger 11
0127-105-18 18" W Outrigger 8
0127-106-10 10' Combination Guard Panel 48
0127-106-08 8' Combination Guard Panel 42
0127-106-06 6' Combination Guard Panel 35.5

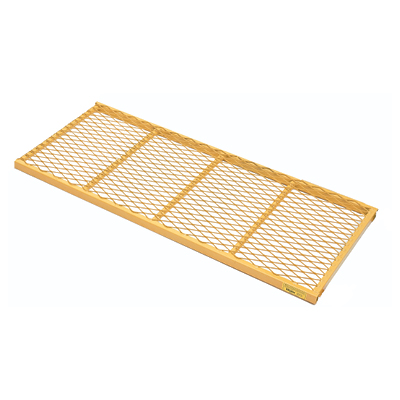

0127-115 10' Expanded Metal Deck 60
0127-114 8' Expanded Metal Deck 48
0127-113 6' Expanded Metal Deck 36
0127-141-10 10' Top Hinged Plywood Deck 73
0127-141-08 8' Top Hinged Plywood Deck 60
0127-141-06 6' Top Hinged Plywood Deck 47
0127-108-10 10' Plywood Deck 52
0127-108-08 8' Plywood Deck 40
0127-108-06 6' Plywood Deck 29
0127-163-10 10' Platform Arm Brace 32
0127-163-08 8' Platform Arm Brace 26
0127-163-06 6' Platform Arm Brace 21
0127-147 Base Extension Unit 29
0127-101 65" H Ladder Frame 25
0127-102 39" H Ladder Frame 15
0026-952 8" Caster with 2" Snap Pin 10
0026-835 5" Caster with 2" Snap Pin 4.75
