ST8100 Multi-Stage

Resources

All images are for illustration only. Haulotte | BilJax reserves the right to modify specifications without notice. Follow all applicable ANSI and OSHA codes/regulations when using this equipment. Do not use in areas where user can come in contact with live power.

ST8100 multi-stage stained plywood deck

part number
Description
Weight

0191-0138 4' x 4' 3/4" Replacement Gray Stained Plywood 30

0106-382-6 Round Intermediate Section - Gray Stained Plywood 49

0106-346-6-2 Round Right Extension - Gray Stained Plywood 26

0106-346-6-1 Round Left Extension - Gray Stained Plywood 26

0106-385-6 4' x 4' Round - Gray Stained Plywood 80

0106-029-6 4' x 4' 45° Deck with 3/4" Gray Stained Plywood 51

0106-039-6 4' x 4' Deck with 3/4" Gray Stained Plywood 80

0106-122-6 3' x 4' Deck with 3/4" Gray Stained Plywood 65

0106-076-6 2' x 6' Deck with 3/4" Gray Stained Plywood 70

0106-028-6 2' x 4' Deck with 3/4" Gray Stained Plywood 46

0106-231-6 2' x 2' Deck with 3/4" Gray Stained Plywood 24

0106-070-6 1' x 4' Deck with 3/4" Gray Stained Plywood 42
ST8100 Multi-stage carpeted deck

part number
Description
Weight

0106-057-3 4' x 4' 5/8" Replacement Gray Carpeted Plywood 34

0106-054-3 4' x 4' 45° Deck with 5/8" Gray Carpeted Plywood 53

0106-052-3 4' x 4' Deck with 5/8" Gray Carpeted Plywood 78

0106-053-3 2' x 4' Deck with 5/8" Gray Carpeted Plywood 48
ST8100 Multi-stage black poly riplle deck

part number
Description
Weight

0106-12-7 4' x 4' 3/4" Replacement Black Poly Ripple Plywood 38

*0106-039-7^ 4' x 4' Deck with 3/4" Black Poly Ripple Plywood 83

part number
Description
Weight

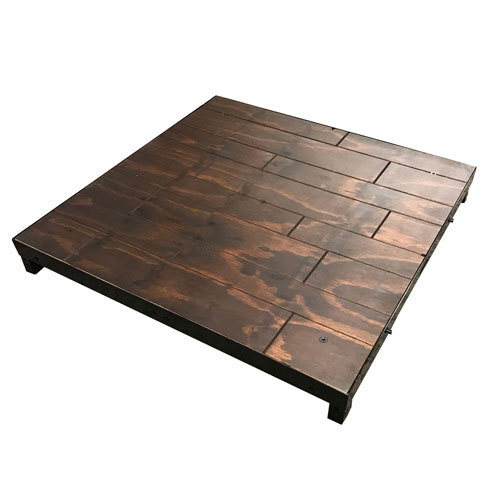

0191-0350-01 4' x 4' Replacement Faux Hardwood - pecan stained 21

0106-039-13 4' x 4' Faux Hardwood Deck - pecan stained plywood 69

part number
Description
Weight

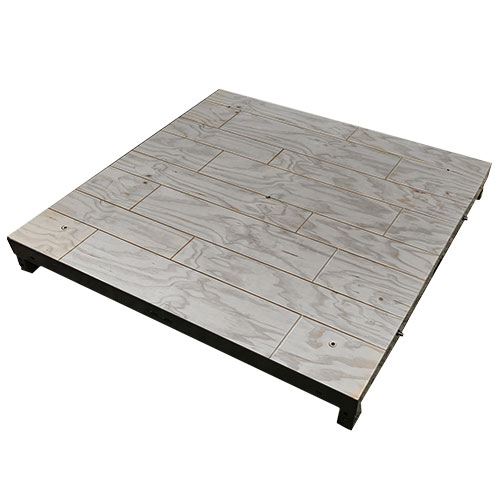

0191-0350-02 4' x 4' Replacement Faux Hardwood - grey stained 21

0106-039-14 4' x 4' Faux Hardwood Deck - grey stained plywood 69

part number
Description
Weight

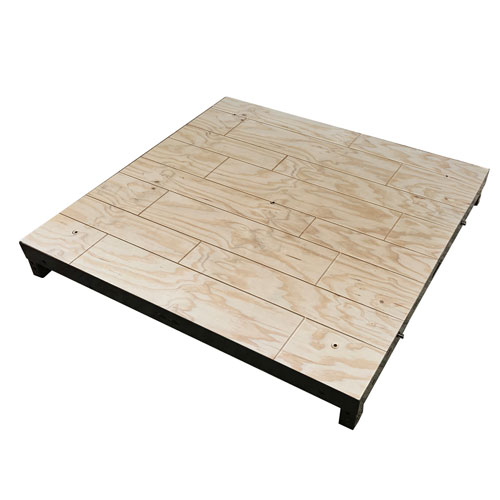

0191-0350-NF 4' x 4' Replacement Faux Hardwood - no finish 21

0106-039-15 4' x 4' Faux Hardwood Deck- no finish plywood 69
