Truss Understructure

Resources

All images are for illustration only. Haulotte | BilJax reserves the right to modify specifications without notice. Follow all applicable ANSI and OSHA codes/regulations when using this equipment. Do not use in areas where user can come in contact with live power.

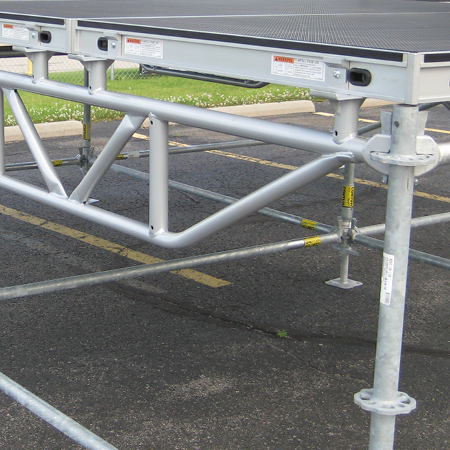

AS2100 stage truss understructure using BilJax contour cup lock system scaffold

part number
Description
Weight

0256-01-100 Starter Collar 5
  0032-609 Leveling Jack 8

0105-256-2096 8' Truss 50

0256-11-304810 4' x 1.0M Vertical Diagonal 12

0256-11-309620 8' x 2.0M Vertical Diagonal 22

0256-11-309610 8' x 1.0M Vertical Diagonal 18

0256-11-304820 4' x 2.0M Vertical Diagonal 18

0105-256-2048 4' Truss 26

0105-256-2024 2' Truss 10

0256-02-2096 8' Horizontal Brace 19

0256-02-2048 4' Horizontal Brace 11

0256-02-2024 2' Horizontal Brace 7

0256-19-120 2.0 M Vertical Post 23

0256-19-115 1.5 M Vertical Post 15

0256-19-110 1.0 M Vertical Post 7.5
