TUF-N-LITE Walkboard

Resources

All images are for illustration only. Haulotte | BilJax reserves the right to modify specifications without notice. Follow all applicable ANSI and OSHA codes/regulations when using this equipment. Do not use in areas where user can come in contact with live power.

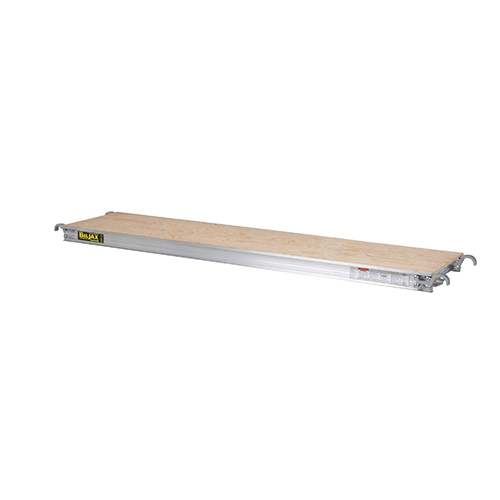

Tun-N-Lite Walkboard Aluminum Frame with Plywood Deck

part number
Description Capacity
Weight

0054-256 32" W x 7' L 50 psf 47

0054-250 28" W x 10' L 50 psf 54

0054-246 28" W x 7' L 75 psf 39

0054-240 24" W x 10' L 50 psf 50

0054-236 24" W x 7' L 75 psf 37

0054-230 22" W x 10' L 50 psf 44.5

0054-226 22" W x 7' L 75 psf 35

0054-220-50 19" W x 10' L 50 psf 40

0054-220 19" W x 10' L 75 psf 46.5

0054-216 19" W x 7' L 75 psf 32

part number
Description
Weight

0054-516 19" W x 7' L - 170 psf capacity 32

part number
Description
Weight

0054-080 Conversion kit 2-bolt to 4-bolt

0191-0050 Plywood for 0054-250

0191-0049 Plywood for 0054-248

0191-0022 Plywood for 0054-220

0191-0019 Plywood for 0054-216

0090-0987 3/16 drive rivet

0090-0545 1/4 - 20 x 1S/tap screw

0054-018-09 Aluminum cross member for 32" walkboard

0054-018-08 Aluminum cross member for 28" walkboard

0054-018-05 Aluminum cross member for 19" walkboard

0054-131 Aluminum hook type B replacement kit

0054-130 Aluminum hook type A replacement kit

0054-101 Lock - swivel assembly, heavy duty B

0054-102 Lock - swivel assembly, heavy duty A 0.3

0054-009-10 10' Aluminum rail 4 mem/punch 10.5

0054-002-08 8' Aluminum rail 3 mem/punch

0054-007-08 8' Aluminum rail 4 mem/punch 6.6

0054-002-07 7' Aluminum rail 3 mem/punch 5.75

0054-007-07 7' Aluminum rail 4 mem/punch 5.75
